I was supposed to go to Lime Rock Park today to watch the Porsche Owners Club flog their cars around the track.  While I’m usually up for anything to do around a racetrack when I walked out to the bike this morning at 8am and saw a frozen puddle in the street the 2 hr ride to the track suddenly seemed much less attractive.  I made the obligatory ‘I gotta back out last minute’ call, took the heat, then went back to bed!

After a couple hours more nice warm sleep I decided to make some use of the day and finish up the swingarm pivot plates.  The shop was deserted and quiet, nice conditions to make some progress.

I had left the parts setup in the mill so that realignment for the bearing bore operations would be easy.  I can use the same boring bars used for the engine bearings.  The bores went quickly, so fast I missed them with the camera!  Strike that, I had dropped them in the wrong folder.

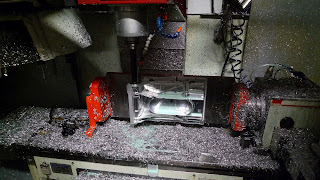

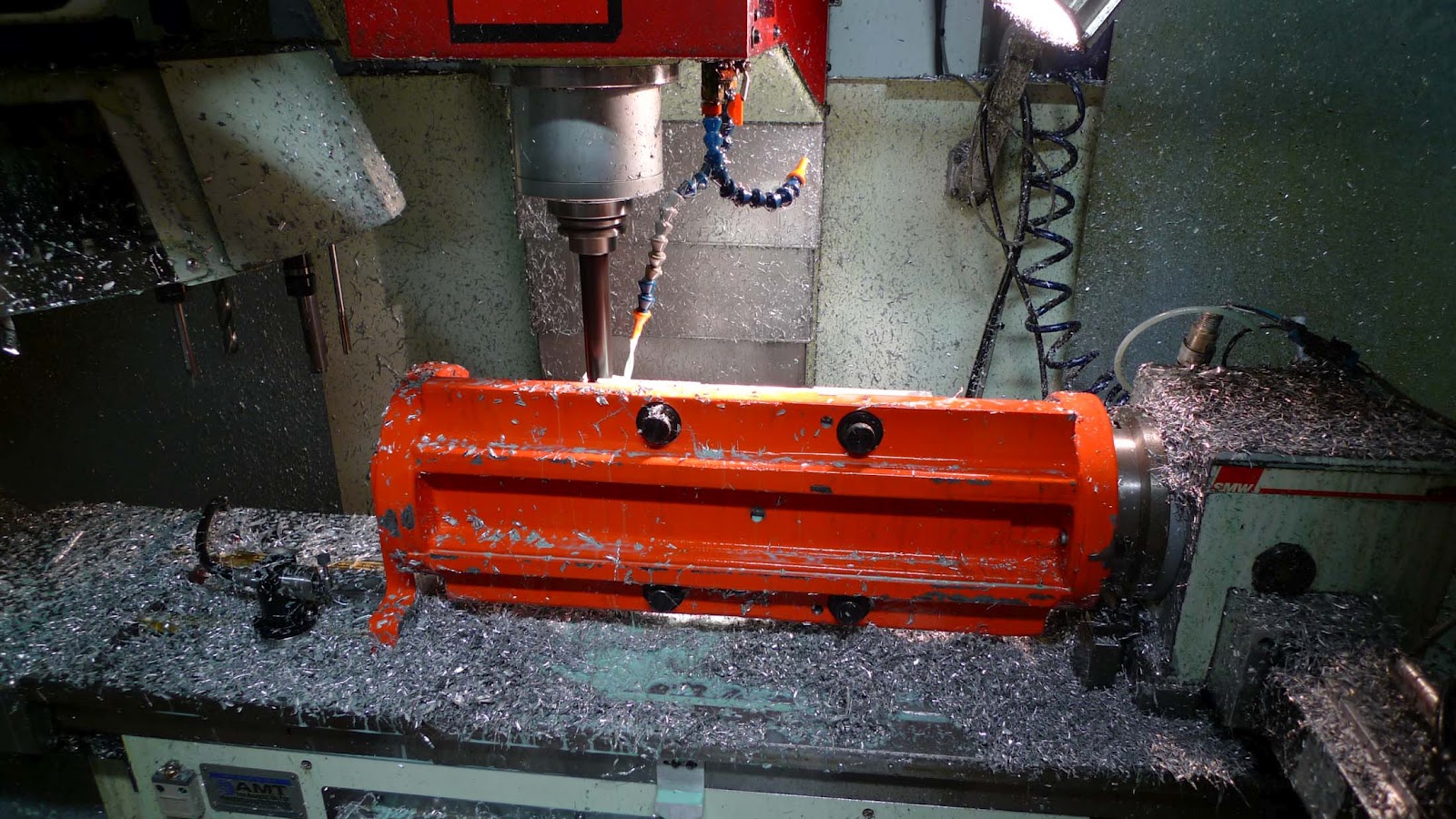

Bore out one bearing hole…

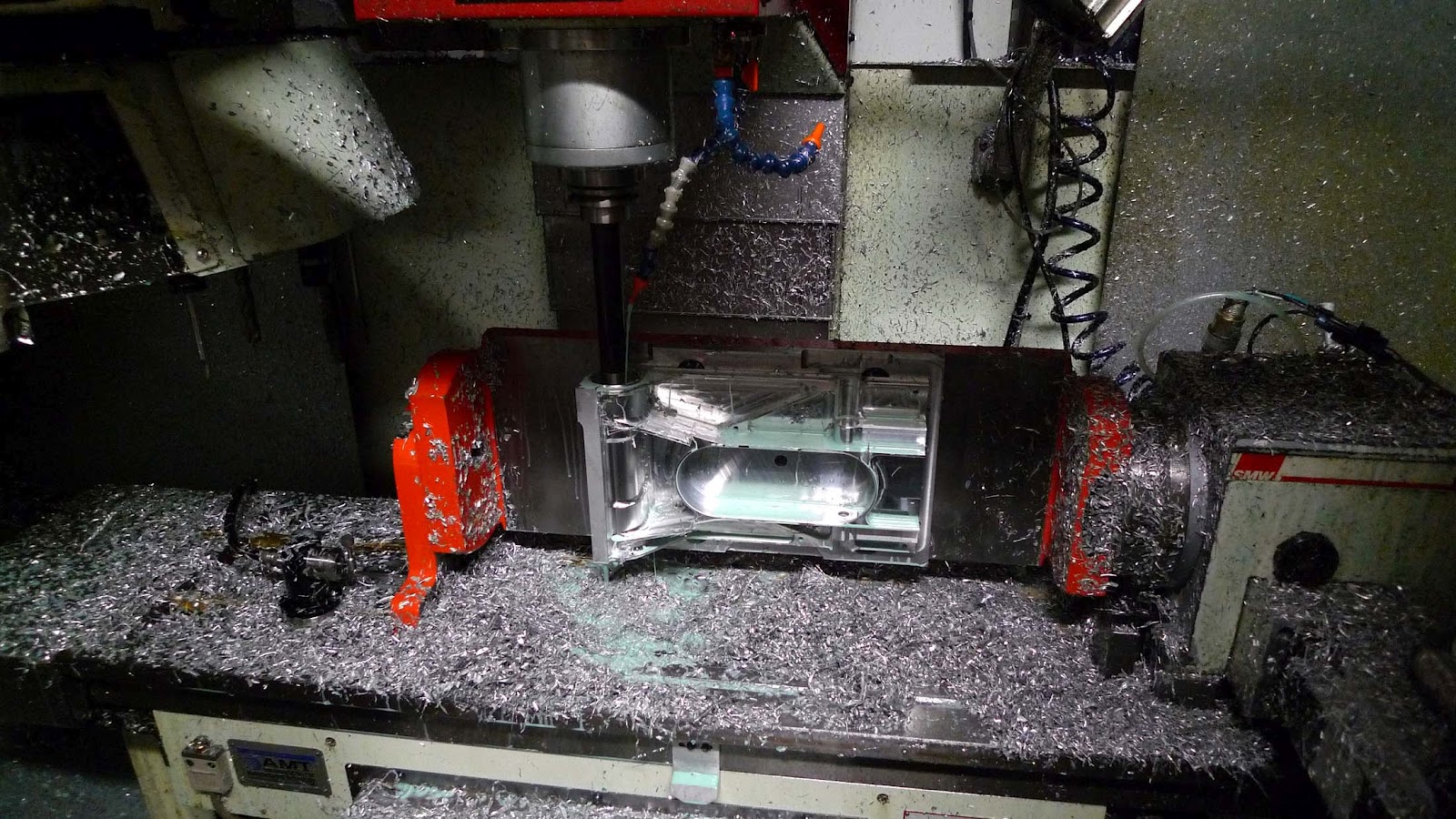

Then flip it and bore the other:

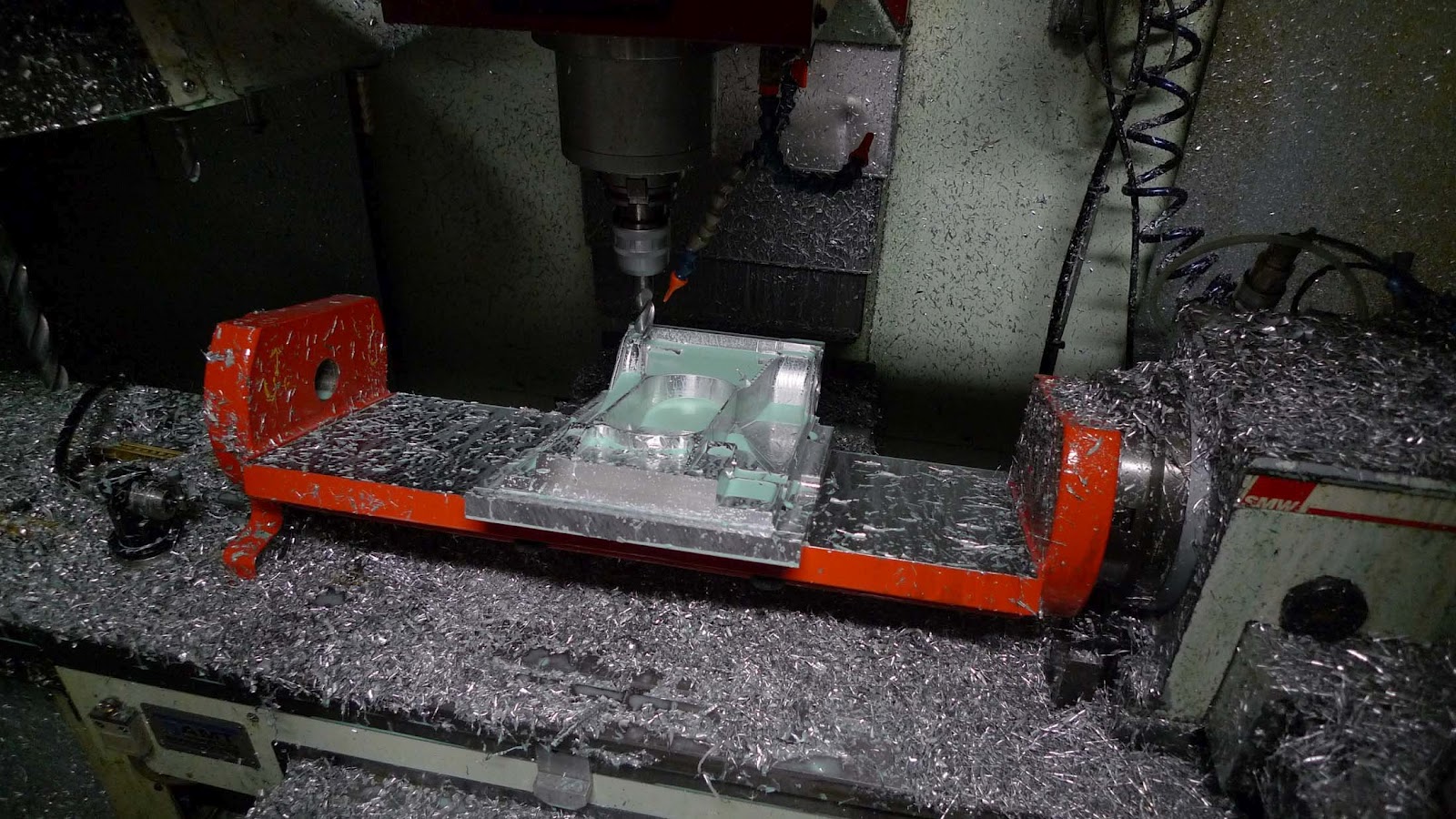

Machining the reinforcing rib tapers and surfacing the outside of the bearing tunnel:

With all the fixtures and programs done and verified, making a second part only took a couple of hours:

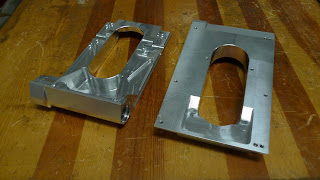

The parts look great and I’m one step closer to getting Scott down for some sheet forming and welding sessions.

Next up is the upper shock mount crossbar, a much simpler part that should go quickly.

Free t-shirt to first person that spots something that’s amiss in the pictures.  Post it in the comments and google will be the time-stamp arbiter.

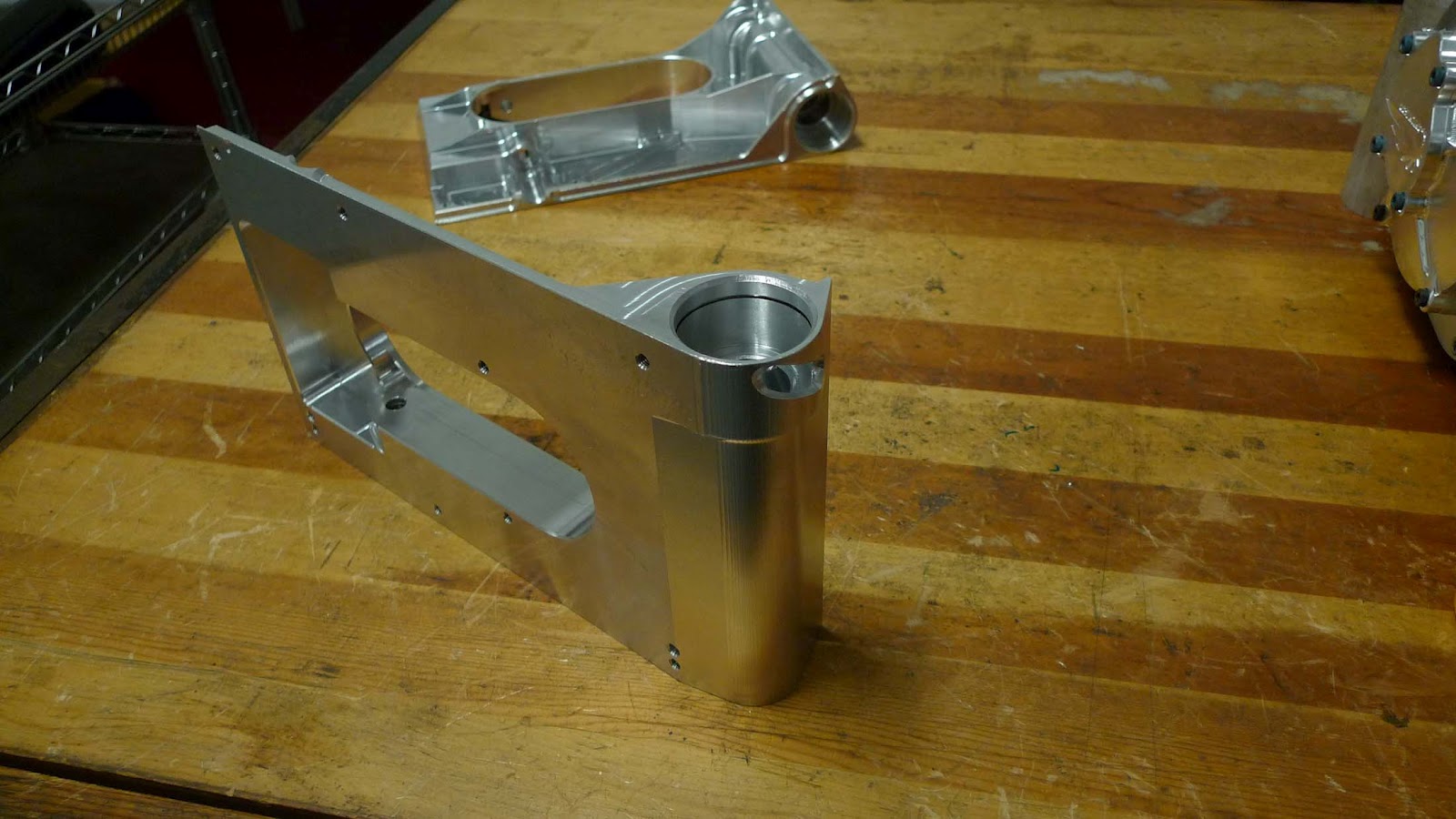

UPDATE:  here’s the problem that can be seen with a close examination of the second to last picture:

That slot in the bearing pocket shouldn’t be there!  It was a problem with a Z retract value that was defined incrementally instead of absolutely so when the tool went to start the finish pass the Z retract did not retract enough and instead of clearing the part plowed through it.

I’ll have Scott Kolb weld this mistake up and then remachine the bore to size.  Normally there would be a concern about the welded material in a stressed area losing its temper and strength but this part will be heat treated after the entire swingarm is welded so it will then regain its full T6 temper strength.

Chris

Recent Posts
Showing 0 comments
  • Robert Swan
    Reply

    Broken boring bar in the first picture. OUCH.

  • coseng
    Reply

    Nope, boring went smoothly.

  • Billy
    Reply

    In the last photo, is the right side pivot plate cracked in the lower lefthand corner?

  • coseng
    Reply

    Billy, good eyes but that was a blemish in the stock that I filed out a bit. It is not a problem for the part.

  • GrahamB
    Reply

    I can't see the mystery problem, but I wonder about about distortion from welding it all together… do you anticipate any problem? Or you'll jig the bearing bores to hold it straight?

  • coseng
    Reply

    Graham, Scott will be welding it in a jig that locates off the pivot bearing bores and the axle holders. Then we'll heat treat it in the same fixture to eliminate any welding warpage issues.

  • Tyrroneous
    Reply

    Just a shot in the dark but, it appears as if there is no coolant flowing in a couple of the pictures.

  • GeddyT
    Reply

    Bottom right hand corner. Two holes instead of one?

  • coseng
    Reply

    Nope on both accounts. I thought it was easy but maybe not. Should I give the answer?

    Chris

  • Whamp
    Reply

    Is it the blue hose with the orange tip facing out and away from the part being milled? Not sure what it does though. Air or water cooling?

  • Whamp
    Reply

    echo echo echo

  • coseng
    Reply

    Lonely in here, huh? Sorry 'bout that, been busy.

    No, that is a coolant tube but I usually point them away and turn them off when taking a pic to get a clearer shot.

    I'll update the post with the problem shown clearly.

    Chris
